Lightweight 100W Foldable Solar Panel
Model
HS-SF502
Solar Panel
50W*2
Pmax
100W
Vmp
20.3V
Imp
5A
Folded Size
520*610*38.4mm
Electrical Data

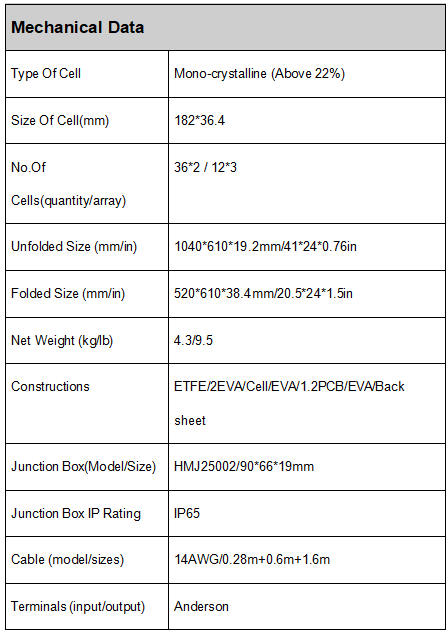

Mechanical Data

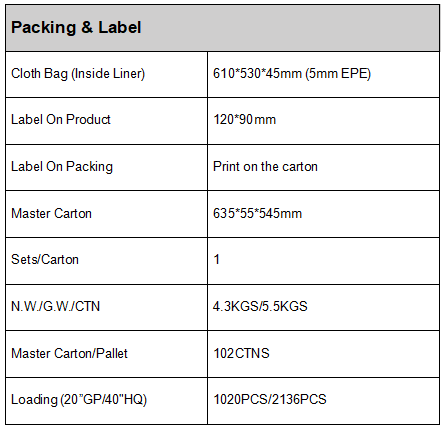

Packing & Label
electrical data
Model
HS-SF502
Maximum Power
100W
Max. Power Voltage(Vmp)
20.3V
Max. Power Current(Imp)
5A
Open Circuit Voltage(Voc)
23.3V
Net Weight
4.3kg
STC:
Irradiance 1000W/m², Module temperature 25°C, AM=1.5
